9200kVA 22kV Rectifier Transformer Case for Morocco Chemical Electrolysis-to-Hydrogen Workshop

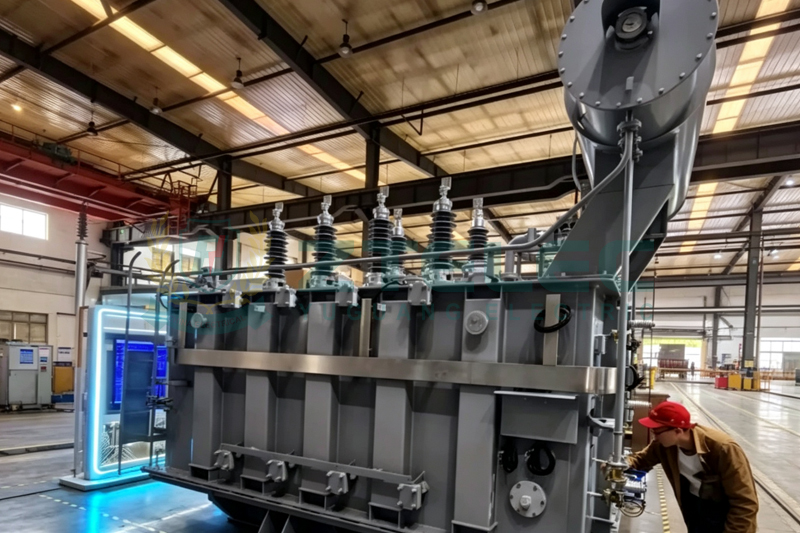

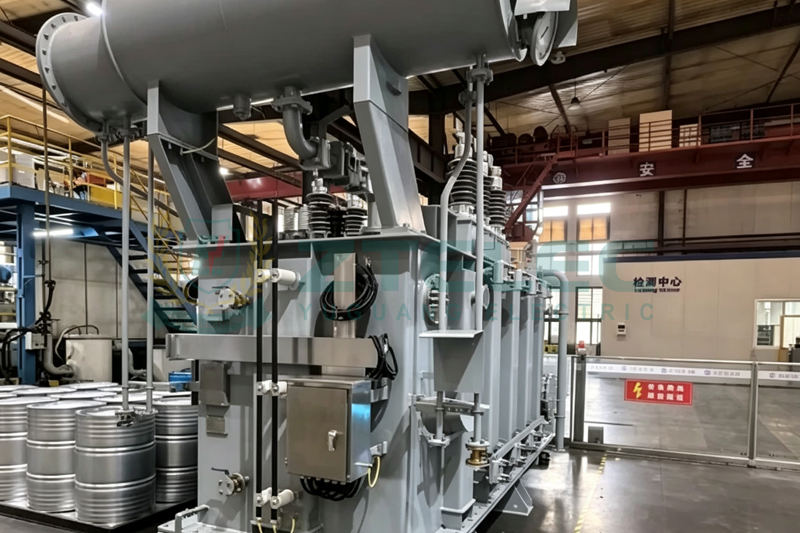

This project supplies 5 sets of 9200kVA 22kV oil-immersed rectifier transformers to a chemical enterprise in Morocco. All units are manufactured and tested in compliance with the IEC 60076 international power transformer standard. They serve as the core power supply of the electrolysis-to-hydrogen production workshop, delivering stable DC power to the hydrogen-making electrolytic cells.

Customer Challenge: Rectifier Transformer Burnout

Before cooperating with us, the customer suffered severe equipment failure. Their original rectifier transformer burned out frequently because of excessive low-side current under the harsh working condition of electrolysis. The repeated breakdowns caused heavy production loss and high maintenance cost on the hydrogen-making line. The customer needed a reliable customized transformer solution that would remove the over-current burnout risk at its source.

Our Solution: Disc-Type Winding Rectifier Transformer

According to the actual site operating condition, our engineering team adopted a professional disc-type winding design. This structure greatly enhances short-circuit withstand capability and anti-shock performance, so the transformer can effectively resist the impact current generated during the electrolysis process. It solves the core pain point of low-side over-current burnout at the design stage.

Production and Factory Testing to IEC 60076

The whole production cycle was 2 months. Before delivery, every unit passed strict factory tests, including partial discharge, short-circuit impedance and temperature rise tests. All technical indicators meet IEC 60076 requirements.

Stable Operation in Heavy-Load Electrolysis

After on-site commissioning in Morocco, the rectifier transformers run continuously and stably in the heavy-load chemical electrolysis environment. The customer can now carry out safe and high-efficiency green hydrogen production without the repeated burnout and downtime of the past.

Custom Rectifier Transformers for Electrolysis Industries

We provide customized rectifier transformer solutions for the chemical, hydrogen production, chlor-alkali and metal electrolysis industries. Our oil-immersed rectifier transformers follow IEC or local regional standards and are built for heavy-duty working scenarios with large impulse current.

Contact us for a tailor-made rectifier transformer quotation and project references.
